Product

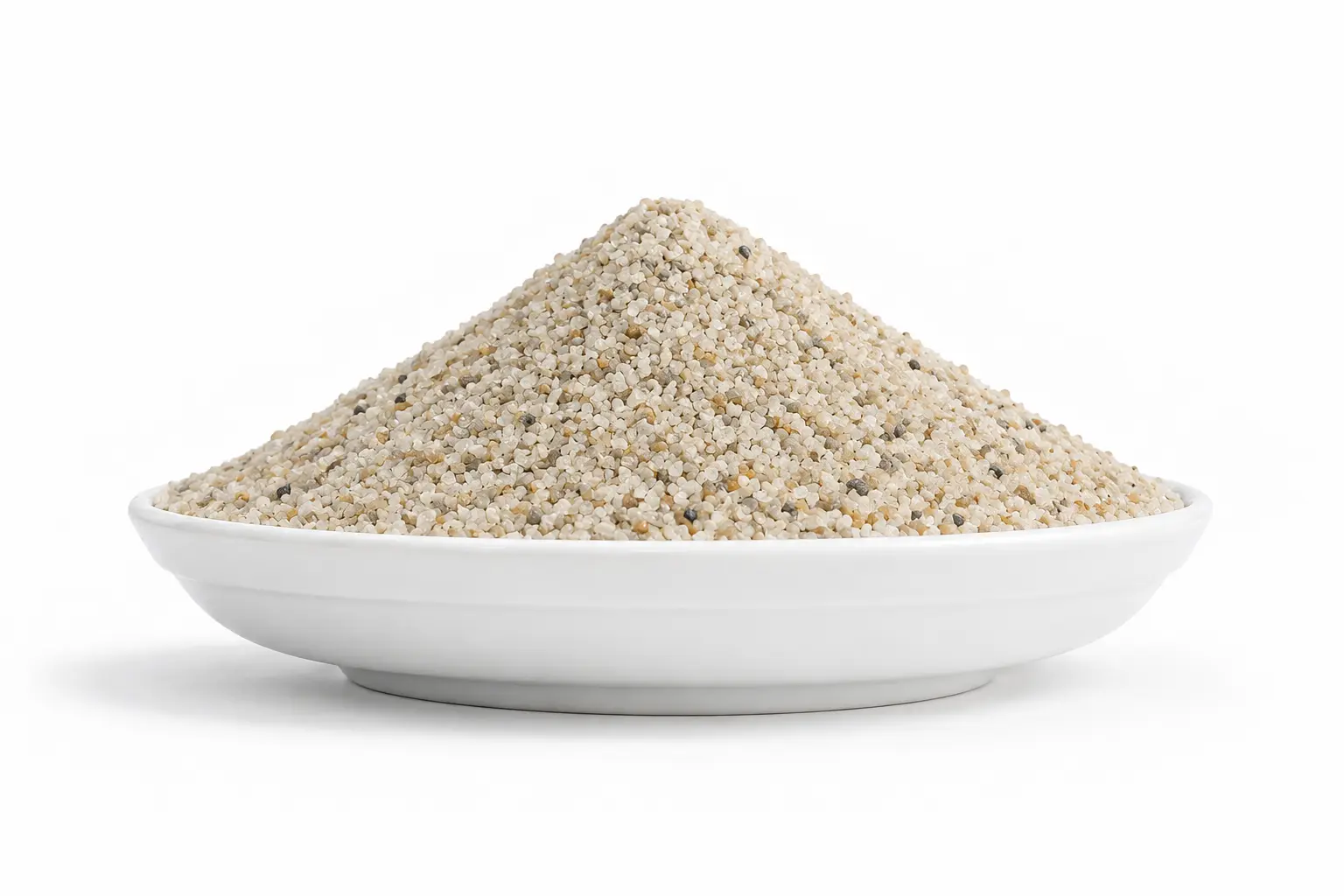

Filter Sand

MICBAC India sand is composed of sub-angular, hard, durable, and dense grains of predominately siliceous material. Extracted from a clean glacial sand deposit, Our Sand’s physical properties make it among the finest available in the world for filtration applications.

The sand is washed, clean dried, and screened to meet exacting specifications with strict adherence to quality control.

Which type of filter sand is suitable for me?

In case you are not sure as to which type of filter sand best to your needs, then please contact us. we can provide you with free technical support and solutions. Also if you need to test the performance of activated carbon first, please take the opportunity to contact us for free samples.

Contact Us

Sand Filter Media

We are a trusted name for manufacturing and supplying a wide range of filter media to various industries located in India and abroad. The Water Filter Sand manufactured by MICBAC India is an ultimate solution to be used for water treatment. It is ultra pure, free from silts and fine stones, has deep bed penetration and longer filter runs. We are known for the quality of products we make and deliver timely.

SILICA SAND

Silica sand is used to filter and clean Portable water filters and pool filter and sewage treatment plants. It is a highly effective filter media as it holds back precipitates containing impurities. Filter sand size, angularity and hardness are the important silica sand characteristics to ensure proper filtering.

Acuro provides Silica Sand with exceptional water filtration capabilities.


SILICA SAND:

  • Non-toxic
  • Rough texture
  • HEco-friendly
  • Adequately larger grains
  • More than 96% free of organic matter, no clay, no radiation
  • Higher flow rates
  • Reduced consumption of backwash water
  • Odorless
  • Stainless
  • High mechanical strength of silica sand and silica gravel
  • Absolute density
  • High acid solubility
  • Cost competitive

QUARTZ SAND

Quartz is a natural mineral mainly composed of silica which is then washed, sieved, dried and bagged. It is neutral, slightly angular and has a beige / light grey colour.

Good quality filter media is essential for monitoring and extraction wells in order to retain most of the formation material and to maximise hydraulic response.

KEY FEATURES AND BENEFITS :

  • Excellent porosity
  • Wide range of sizes
  • Washed, dried & bagged

COARSE SAND

We specialize in trading high quality Coarse Sand. Due to erosion effect these rock fragments gets naturally tumbled with flowing river water from mountains towards planes, making its surface smooth. To avoid any impurity, our quality experts test this sand on set parameters of quality in adherence to defined standards.
Leveraging over the skills of our qualified team of professionals, we are instrumental in offering wide range of Coarse Sand.

KEY FEATURES AND BENEFITS:

  • High effective
  • Long shelf life
  • Effective usage

Features:

  • Used for filtering water
  • High quality
  • Uniform in size

MICBAC India’s Filter Sand over other silica sands:

  • Increased surface area improves particle removal while still providing maximum water flow
  • Deep bed penetration
  • Longer filter runs
  • Maximum turbidity entrapment provided by sub-angular shape
  • Less than 0. 5 % acid solubility
  • It is virtually free from fines and silts
  • Significant amounts of time and water is saved in the start-up backwash cycle through reduced initial backwash cycles
  • Washed, dried and screened to meet exacting specifications
  • High quality silica sand and consistent uniformity
  • Filter media that meets or exceeds ISI specifications
  • Uniform coefficients less than 1. 4 resulting in a highly uniform bed
  • Water output quality 10 -15 microns. (sand 0. 5 – 1. 0 mm)

Filter Media Specifications for Water Filtration:



Specifying Procedure

When specifying filter media size, it is best to state the Effective Size and Uniformity Coefficient or the Nominal Size required. Only one system should be used. If in doubt, please contact our technical service team who will be pleased to assist in explaining the best method for specifying.

Effective Size (e.s.) -The sieve size opening that will allow 10 percent, by weight, of a representative sample for the filter material to pass.

Uniformity Coefficient (U.C.) -The ratio of the sieve size opening from which 60 percent of the sand, by weight, will pass divided by the sieve size opening from which 10 percent of the sand, by weight, will pass.

Typical Filtration Bed Profiles

Parameter:

The following is the parameter information of the Sand Filter media we mainly produce. We can also customize the coarseness and sizes according to specific client’s need.



PRODUCT 3 GRAVEL 4 GRAVEL 5 GRAVEL 6 SAND 6.5 SAND 7C SAND 7M* SAND W9 SAND
SIEVE SIZE TYPICAL GRADING ANALYSIS TEST RESULTS
PERCENT PASSING (%)
40.00 . . . . . . . .
22.40 100 . . . . . . .
19.00 82 . . . . . . .
13.20 16 100 . . . . . .
11.20 2 92 . . . . . .
9.50 . 60 100 . . . . .
6.70 . 10 99 . . . . .
4.75 . 1 46 . . . . .
3.35 . . 4 100 . . . .
2.36 . . 1 87 . . . .
2.00 . . . 60 100 . . .
1.75 . . . 16 99 . . .
1.40 . . . 1 98 100 100 .
1.21 . . . . 59 99 99 .
1.00 . . . . 14 85 96 .
0.85 . . . . 8 63 84 .
0.71 . . . . 1 27 70 .
0.60 . . . . . 10 34 100
0.50 . . . . . 3 8 99
0.43 . . . . . 1 2 98
0.30 . . . . . . 1 81
0.21 . . . . . . . 39
0.15 . . . . . . . 5
0.075 . . . . . . . 1
NORMAL SIZE(mm) 12-25mm 6-12mm 3-6mm 1.5-3.0 0.8-1.8 0.5-1.3 0.4-1.2 0.1-0.5
LIMITS(%) 8% +/- 8% +/- 8% +/- 8% +/- . . . .
EFFECTIVE SIZE(mm) . . . . 0.85-0.95 0.55-0.65 0.45-0.55 .
UNIFORMITY COEFFICIENT . . . . <1.5 <1.5 <1.5 .
BULK DENSITY 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
SPECIFIC GRAVITY 2.65 2.65 2.65 2.65 2.65 2.65 2.65 2.65
ACID SOLUBILITY <2% <2% <2% <2% <2% <2% <2% <2%
* 7M products are made to order only
* If these standard sizes are unsitable, please our technical staff for your specific needs.
